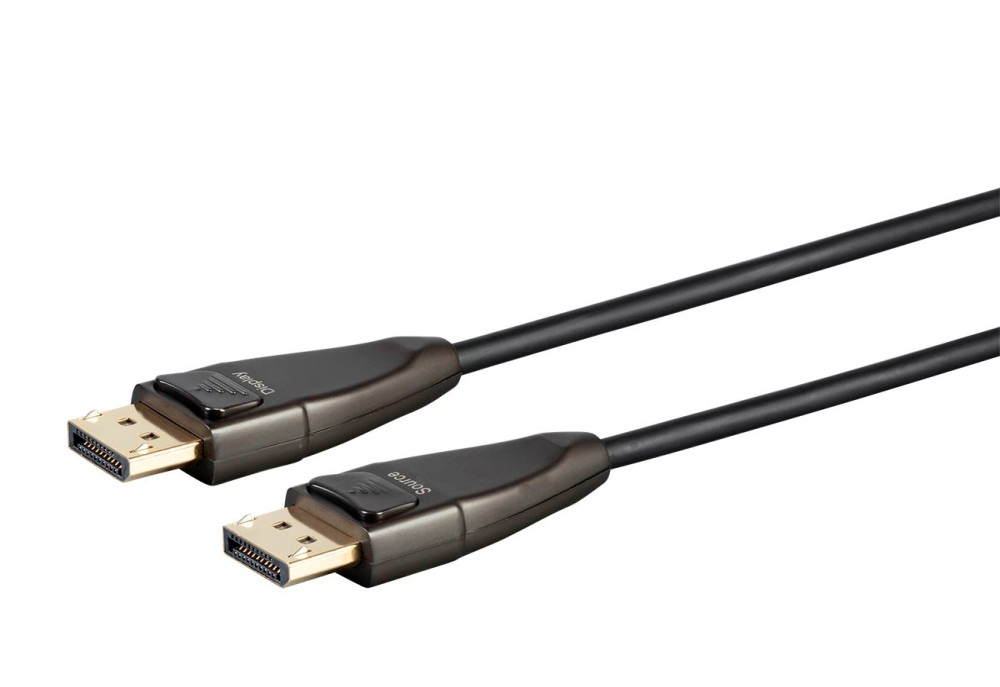

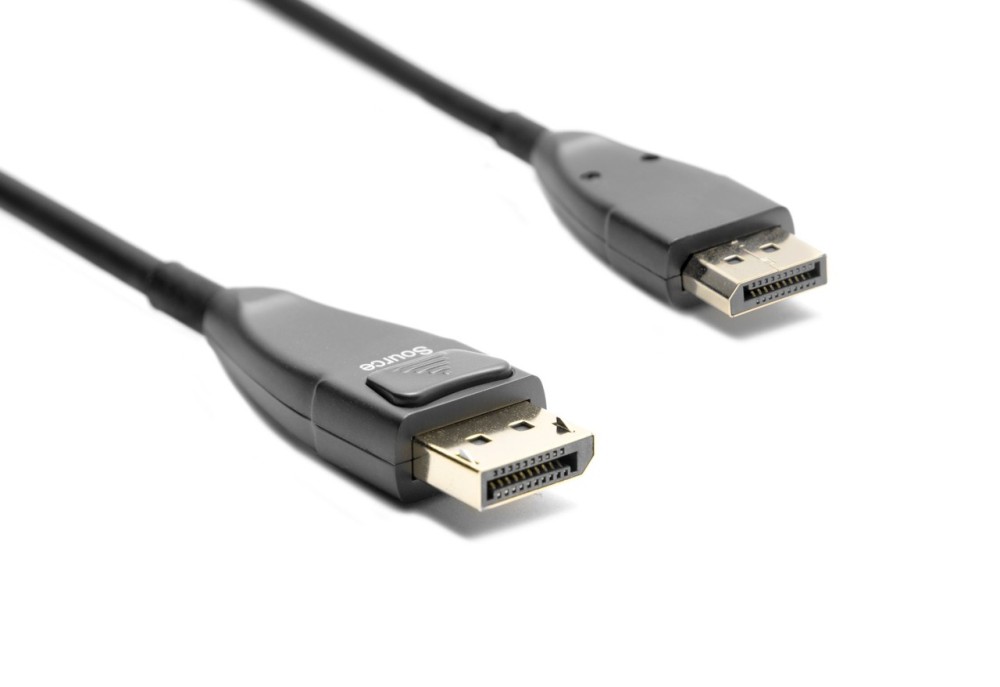

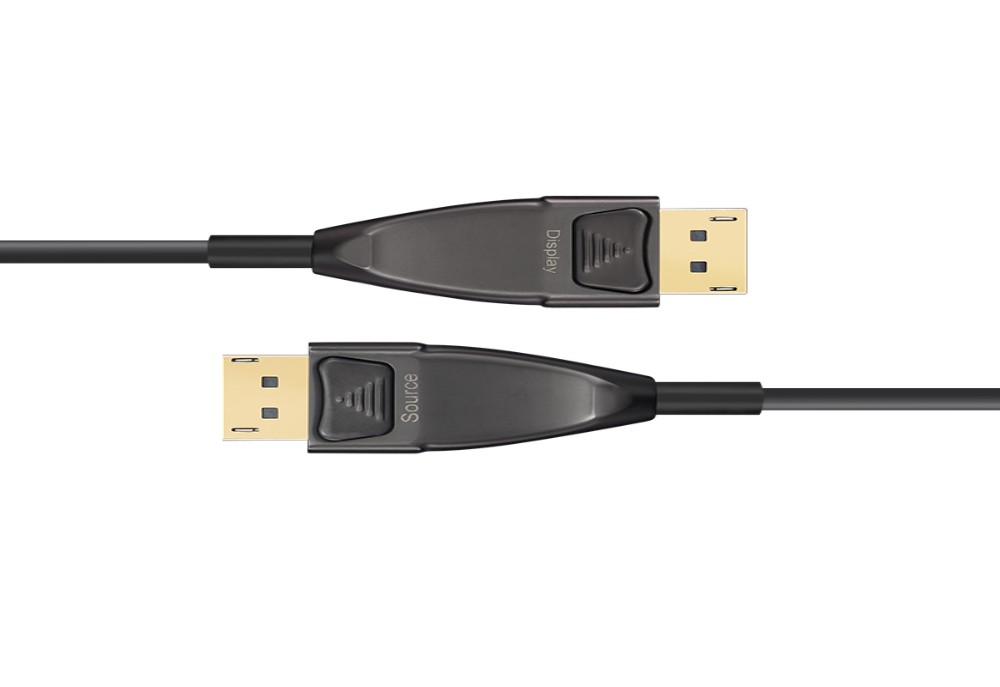

LA-AOC-DP14 Series
DP 1.4 Active Optical Cable 7680 x 4320 (8K) @ 60 Hz
The LinkAura LA-AOC-DP14 Series DP active Fiber Optic 8K DP Cable which
is suited for critical and versatile installations. It supports DP 1.4 Maximum
Data Rate 32.4 Gbps with light weight, flexible and ultra-small long-term
bending radius (20mm) hybrid cable. With our advanced optical engine
embedded. This DP Hybrid Cable provides full DP1.4 signal integrity,
support up to 100m maximum length, plug and play. No external power
required.
• Compliance with 7680 x 4320 (8K)@ 60 Hz 4:2:0 resolutions up to 100 meters
• Data transfer rates up to 32.4 Gbps
• Compatible with DP 1.4 standard: EDID,HBR3, HDCP (2.2), HDR (High Dynamic Range),HEC etc.
• 21:9 cinema aspect ratio and BT.2020 colorimetry
• Up to 32 audio channels with a 1536-Hz sampling rate
• Delivers dual video streams to compatible displays
• Zinc-alloy DP connectors for enhanced durability and performance
• Cable OD: 4.8mm, 4 fiber + 8 copper wire
• Triple-shielding further protects against interference for optimal signal quality
• OM3 fiber technology greatly reduces EMI/RFI emissions
• Hybrid construction utilizes both fiber and copper to supply power
• Extended temperature range from -40° to 70°C for installations in harsh environments or manufacturing floors
• CL2,CL3,CMP and LSZH Jackets comply with fire protection regulations and increases the safety of employees in the
event of a fire

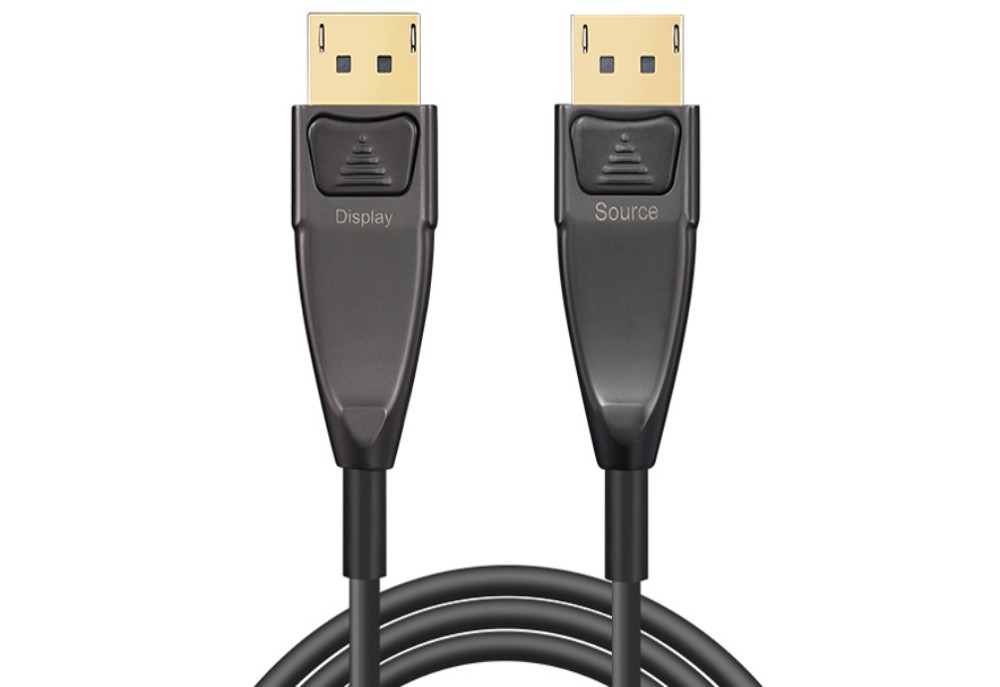

• Has Source & Display clearly printed on the connector for easy identification
• Has high pulling strength and compression load
• Plug and play, no external power required
• Display end with detachable connector
