LA-AOC-8KHD2 Series

LA-AOC-8KHD2 Series

HDMI 2.1 Detachable HDMI AOC-8K@60Hz

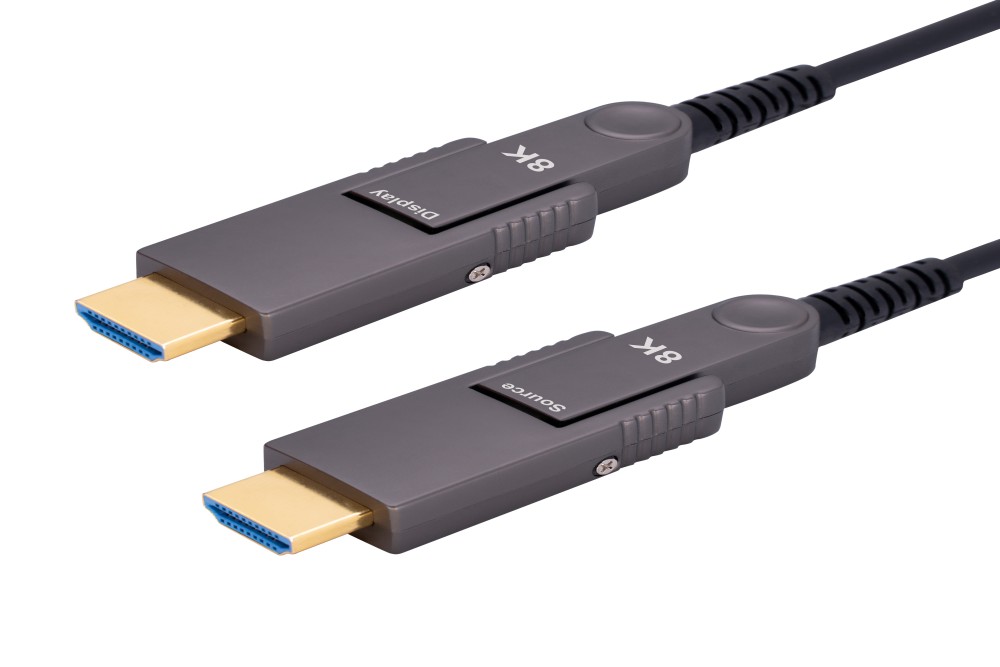

The Link Aura LA-AOC-8KHD2 Series HDMI Active Fiber Optic UHD
Pluggable HDMI Cable, perfect for demanding and adaptable
installations. This cable supports HDMI data rates up to 12Gbps per
channel, with a total bandwidth of 48Gbps. It features a lightweight
and flexible design with an ultra-small bending radius of 45mm, ideal
for long-term use. Equipped with advanced optical technology, the
cable ensures complete HDMI signal integrity over distances of up to
100 meters. It offers a hassle-free, plug-and-play experience without
the need for external power.

Enquire Now

Description

• Compatible with HDMI 2.1 standard: EDID,
CEC, HDCP2.3, Dynamic HDR, HEC, eARC etc.
• Support 7680 x 4320 (8K)@60Hz 4:4:4
resolutions
• Data transfer rates up to 48Gbps
• Support (DSC) Display Stream Compression,
(VRR) Variable refresh rate, (QMS) Quick media
switching, (QFT) Quick frame transport,
(ALLM) Auto low latency Mode
• No loss of signal – delivering crystal clear digital
images instantly;
• Cable OD: 4.5mm, 4 fiber + 7 copper wire
• Up to 100m Maximum Length (Custom Length
Available), recommend length under 30m is
• better to guarantee eARC.

• OM3 fiber technology greatly reduces EMI/RFI emissions
• Triple-shielding further protects against interference for
optimal signal quality
• Extended temperature range from -40° to 70°C for
installations in harsh environments or
• manufacturing floors
• PVC, CL2, CL3, CMP and LSZH Jackets comply with fire
protection regulations and increases
• the safety of employees in the event of a fire
• Has Source & Display clearly printed on the connector for
easy identification
• Has high pulling strength and compression load
• Plug and play, no external power required

Application
• Digital Signage,
• LED signboards in streets and in stadiums
• Medical Imaging Equipment
• Airplane On-board Video System

• Home Theater, Blue-ray, 3D videos, Projector, Set-up box,
DVR, Game Consoles and Computer
• TV Broadcast Station
• Conference Room Video Equipment
• Security systems

Specifications

Part Number	Description
LA-AOC-8KHD2-10	LinkAura HDMI 2.1 type D (male) to type D (male) Detachbale AOC HDMI EDID, CEC, HDCP2.3, Dynamic HDR, HEC, eARC etc. Support (8K)@60Hz 4:4:4 resolutions 48Gbps- 10mtr -3 Year Standard Warranty
LA-AOC-8KHD2-15	LinkAura HDMI 2.1 type D (male) to type D (male) Detachbale AOC HDMI EDID, CEC, HDCP2.3, Dynamic HDR, HEC, eARC etc. Support (8K)@60Hz 4:4:4 resolutions 48Gbps- 15mtr -3 Year Standard Warranty
LA-AOC-8KHD2-20	LinkAura HDMI 2.1 type D (male) to type D (male) Detachbale AOC HDMI EDID, CEC, HDCP2.3, Dynamic HDR, HEC, eARC etc. Support (8K)@60Hz 4:4:4 resolutions 48Gbps- 20mtr -3 Year Standard Warranty
LA-AOC-8KHD2-25	LinkAura HDMI 2.1 type D (male) to type D (male) Detachbale AOC HDMI EDID, CEC, HDCP2.3, Dynamic HDR, HEC, eARC etc. Support (8K)@60Hz 4:4:4 resolutions 48Gbps- 25mtr -3 Year Standard Warranty
LA-AOC-8KHD2-30	LinkAura HDMI 2.1 type D (male) to type D (male) Detachbale AOC HDMI EDID, CEC, HDCP2.3, Dynamic HDR, HEC, eARC etc. Support (8K)@60Hz 4:4:4 resolutions 48Gbps- 30mtr -3 Year Standard Warranty
LA-AOC-8KHD2-50	LinkAura HDMI 2.1 type D (male) to type D (male) Detachbale AOC HDMI EDID, CEC, HDCP2.3, Dynamic HDR, HEC, eARC etc. Support (8K)@60Hz 4:4:4 resolutions 48Gbps- 50mtr -3 Year Standard Warranty
LA-AOC-8KHD2-70	LinkAura HDMI 2.1 type D (male) to type D (male) Detachbale AOC HDMI EDID, CEC, HDCP2.3, Dynamic HDR, HEC, eARC etc. Support (8K)@60Hz 4:4:4 resolutions 48Gbps- 70mtr -3 Year Standard Warranty
LA-AOC-8KHD2-100	LinkAura HDMI 2.1 type D (male) to type D (male) Detachbale AOC HDMI EDID, CEC, HDCP2.3, Dynamic HDR, HEC, eARC etc. Support (8K)@60Hz 4:4:4 resolutions 48Gbps- 100mtr -3 Year Standard Warranty

Download

Type	Title	Date	Download
	LA-AOC-8KHD2 Series	24 April, 2025
