Innovation for Your AV Vision
LA-AOC- 4KHD2A Series
HDMI 2.0 Detachable HDMI Armoured AOC-4K@60Hz

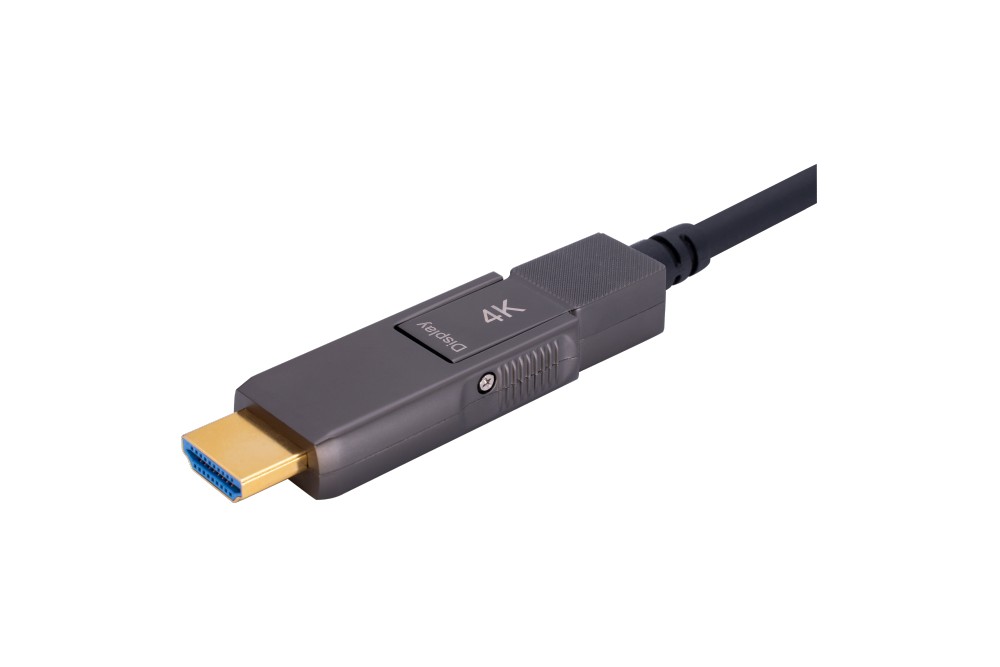

The Link Aura LA-AOC-4KHD2A Series HDMI Armored Active Fiber
Optic UHD Pluggable HDMI Cable, perfect for demanding and
adaptable installations. This cable supports HDMI data rates up to
5Gbps per channel, with a total bandwidth of 18Gbps. It features a
lightweight and flexible design with an ultra-small bending radius of
45mm, ideal for long-term use. Equipped with advanced optical
technology, the cable ensures complete HDMI signal integrity over
distances of up to 100 meters. It offers a hassle-free, plug-and-play
experience without the need for external power.
• Compatible with HDMI 2.1 standard: EDID,
CEC, HDCP2.3, Dynamic HDR, HEC, eARC etc.
• Support 4096 x 2160/3840 x 2160 (4K)@60Hz
4:4:4 resolutions
• Delivers dual video streams to compatible
displays
• 1:9 cinema aspect ratio and BT.2020
colorimetry
• Compliant with category 2 specifications — 600-
MHz clock frequency
• Up to 32 audio channels with a 1536-Hz
sampling rate
• Supports up to eight PCM channels, DTS-HD Master and
Dolby Digital True HD surround sound audio

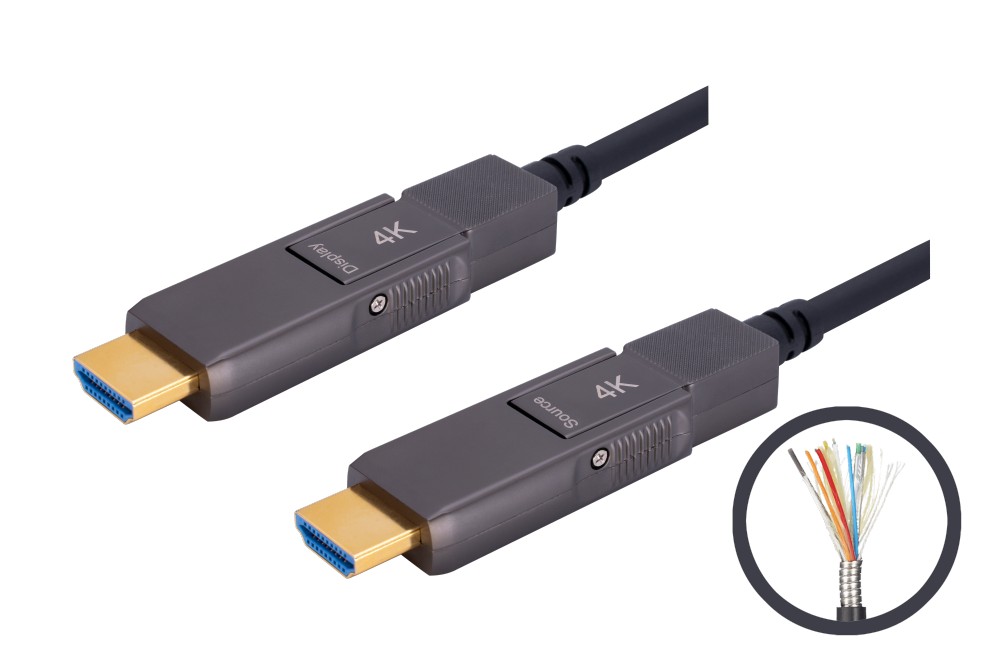

• Cable OD: 5.8mm, 4 fiber + 7 copper wire
• Up to 100m Maximum Length (Custom Length Available).
• OM3 fiber technology greatly reduces EMI/RFI emissions
• Triple-shielding further protects against interference for
optimal signal quality
• Extended temperature range from -40° to 70°C for
installations in harsh environments or
• manufacturing floors
• TPU Jacket is soft and
Application
• Digital Signage,
• LED signboards in streets and in stadiums
• Medical Imaging Equipment
• Airplane On-board Video System
• Home Theater, Blue-ray, 3D videos, Projector, Set-up box,
DVR, Game Consoles and Computer
• TV Broadcast Station
• Conference Room Video Equipment
• Security systems
| Type | Title | Date | Download |
|---|---|---|---|
 |
LA-AOC- 4KHD2A Series | 23 April, 2025 |  |
